Loud K#5 Bell

for all discussion about horns fitted to locomotives and trains, their history, and collecting them.
cold-steel-iron United States of America
Airchime Junior
Posts: 10
Joined: Thu Mar 11, 2021 1:56 pm

Loud K#5 Bell

Post by cold-steel-iron »

I have a K5la that has a screaming Big Bore #5 bell that is so bloody loud and is the first one to speak and the last to speak does anybody know how to calm it down? Any help is appreciated and thanks
cold-steel-iron United States of America
Airchime Junior
Posts: 10
Joined: Thu Mar 11, 2021 1:56 pm

Re: Loud K#5 Bell

Post by cold-steel-iron »

So the manifold on this particular horn has threads in the air outlets on the #4 and #5 bell positions and they definitely were either done from the factory or at some point added along time ago because they have a lot of soot in the threads. So I had a few P horn restricters and took one and it threaded in the outlet perfectly so I am going to try this remedy
cold-steel-iron United States of America
Airchime Junior
Posts: 10
Joined: Thu Mar 11, 2021 1:56 pm

Re: Loud K#5 Bell

Post by cold-steel-iron »

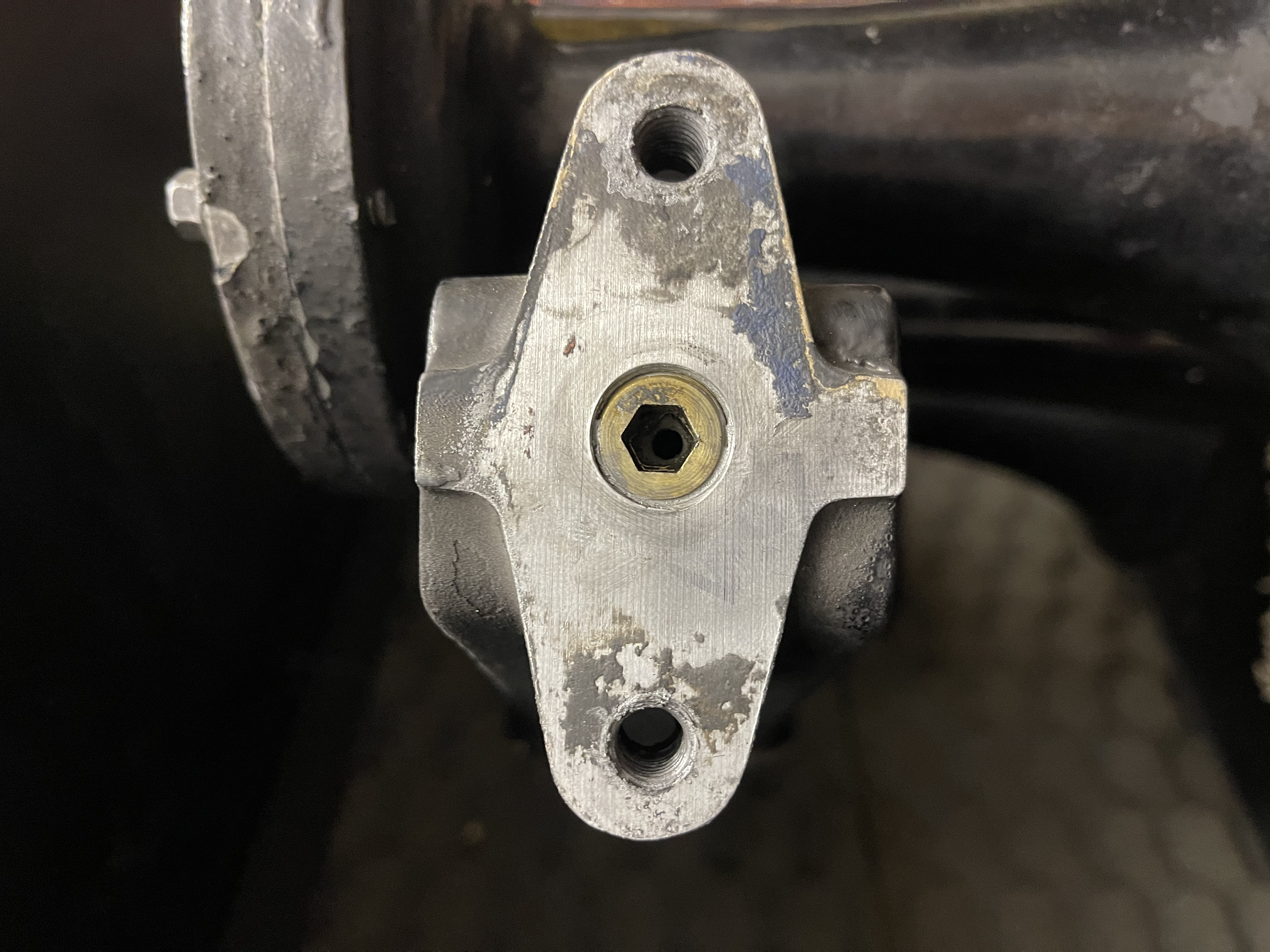

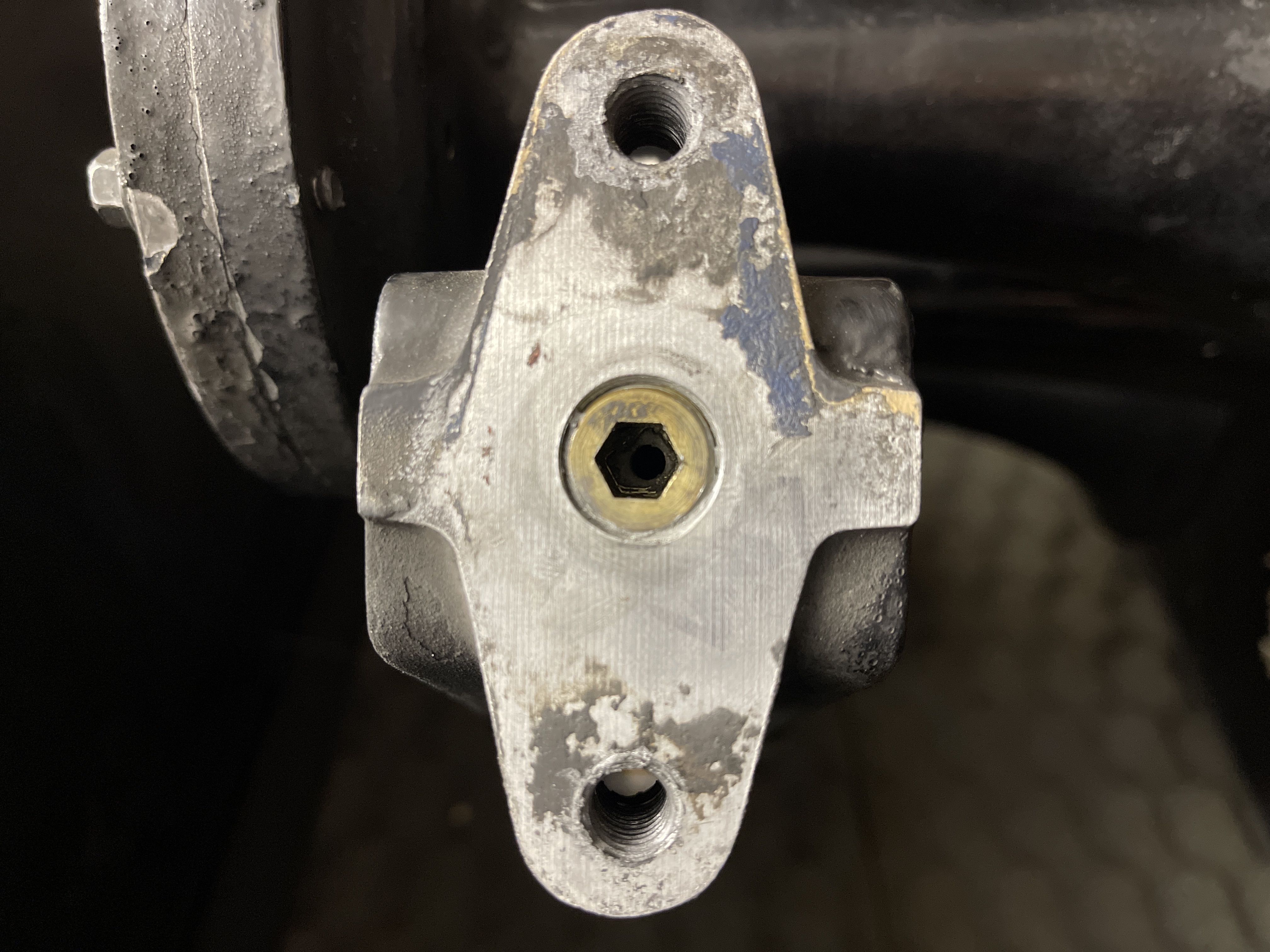

Some pictures
Attachments
cold-steel-iron United States of America
Airchime Junior
Posts: 10
Joined: Thu Mar 11, 2021 1:56 pm

Re: Loud K#5 Bell

Post by cold-steel-iron »

Well it helped a little but still overpowering. Any other ideas?
epederson United States of America
Airchime Junior
Posts: 29
Joined: Wed Sep 23, 2020 9:47 pm

Re: Loud K#5 Bell

Post by epederson »

Interesting. I’m assuming that the threads were made for plugs so that the horn could be run as a 3 chime?
epederson United States of America
Airchime Junior
Posts: 29
Joined: Wed Sep 23, 2020 9:47 pm

Re: Loud K#5 Bell

Post by epederson »

You could restrict the foot of the 5 bell using a set screw just like the manifold base restrictors you have.
cold-steel-iron United States of America
Airchime Junior
Posts: 10
Joined: Thu Mar 11, 2021 1:56 pm

Re: Loud K#5 Bell

Post by cold-steel-iron »

Yeah I think that would work. I took the diaphragms out and they are kinda bent and there was debris on the nozzle so im going to replace the diaphragms with better ones and clean the nozzle and hope that helps. I am kinda nervous using a set screw that would be the last ditch effort. Ill post the outcome here and thanks!
User avatar
Railgeek Virgin Islands (USA)
Sandcast Senior
Posts: 54
Joined: Sun Sep 20, 2020 3:56 pm
Location: Seattle, WA

Re: Loud K#5 Bell

Post by Railgeek »

You could put more preload on the 5 bell by putting pieces of printer paper behind the second diaphragm. This makes it harder to blow with the same air pressure.
-Reed Skyllingstad
www.PrecisionPartsNW.com
User avatar
Mafarnz United States of America
Sandcast Senior
Posts: 81
Joined: Mon Sep 21, 2020 5:42 pm
Location: Pullman WA

Re: Loud K#5 Bell

Post by Mafarnz »

Those restrictors have a larger orifice than the inlet on the bell foot so they won't make any difference until that hole is smaller.

Normally the restrictor is placed in the bell rather than the manifold. This is quite common from the factory on the big bore #5 bells, though I've never heard of a 4A being restricted from the factory. Typically this is done with a 1/4" brass plug that is drilled out. Normal K bell orifice is 1/8", so try something smaller than that for the plugs. Brass plugs are cheap and easy to work with, aluminum even more so.
Maddie F
She/her
Long live the BN and the RS3K!
cold-steel-iron United States of America
Airchime Junior
Posts: 10
Joined: Thu Mar 11, 2021 1:56 pm

Re: Loud K#5 Bell

Post by cold-steel-iron »

Great ideas Ill try the paper behind the diaphragm first and maybe last resort the bell foot restrictor. Thanks for all the suggestions
