Nathan M Series Catalog & Technical Data

for any official drawings, diagrams and technical bulletins from horn and whistle manufacturers.
Forum rules
HWAdmin
Site Owner
Posts: 92
Joined: Tue Sep 15, 2020 8:13 pm

Nathan M Series Catalog & Technical Data

Post by HWAdmin »

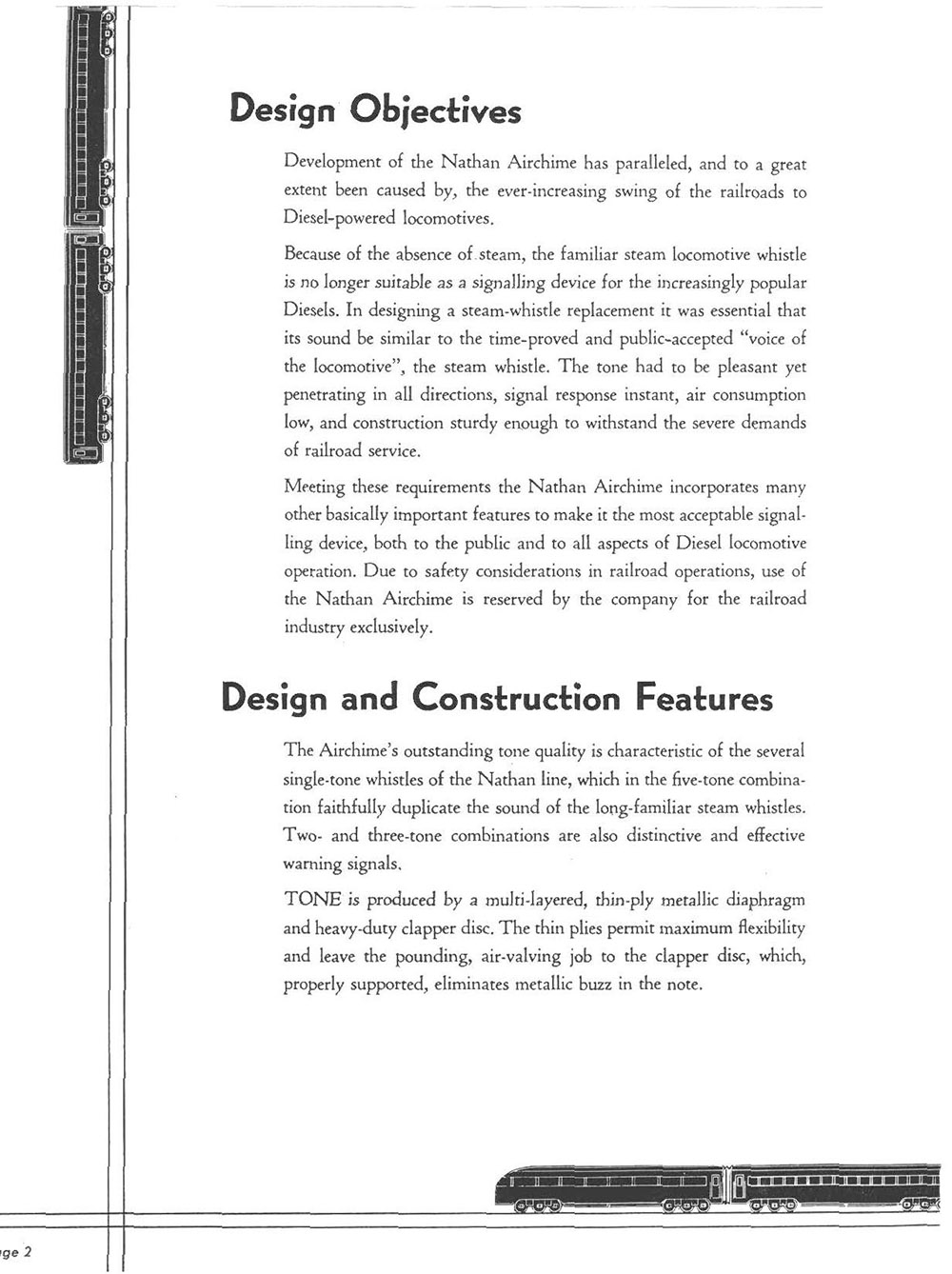

Nathan M Series Catalog-page-001.jpg
Nathan M Series Catalog-page-002.jpg
Nathan M Series Catalog-page-003.jpg
Nathan M Series Catalog-page-004.jpg
Top
HWAdmin
Site Owner
Posts: 92
Joined: Tue Sep 15, 2020 8:13 pm

Re: Nathan M Series Catalog & Technical Data

Post by HWAdmin »

Nathan M Series Catalog-page-005.jpg
Nathan M Series Catalog-page-006.jpg
Nathan M Series Catalog-page-007.jpg
Nathan M Series Catalog-page-008.jpg
Top
HWAdmin
Site Owner
Posts: 92
Joined: Tue Sep 15, 2020 8:13 pm

Re: Nathan M Series Catalog & Technical Data

Post by HWAdmin »

Nathan M Series Catalog-page-009.jpg

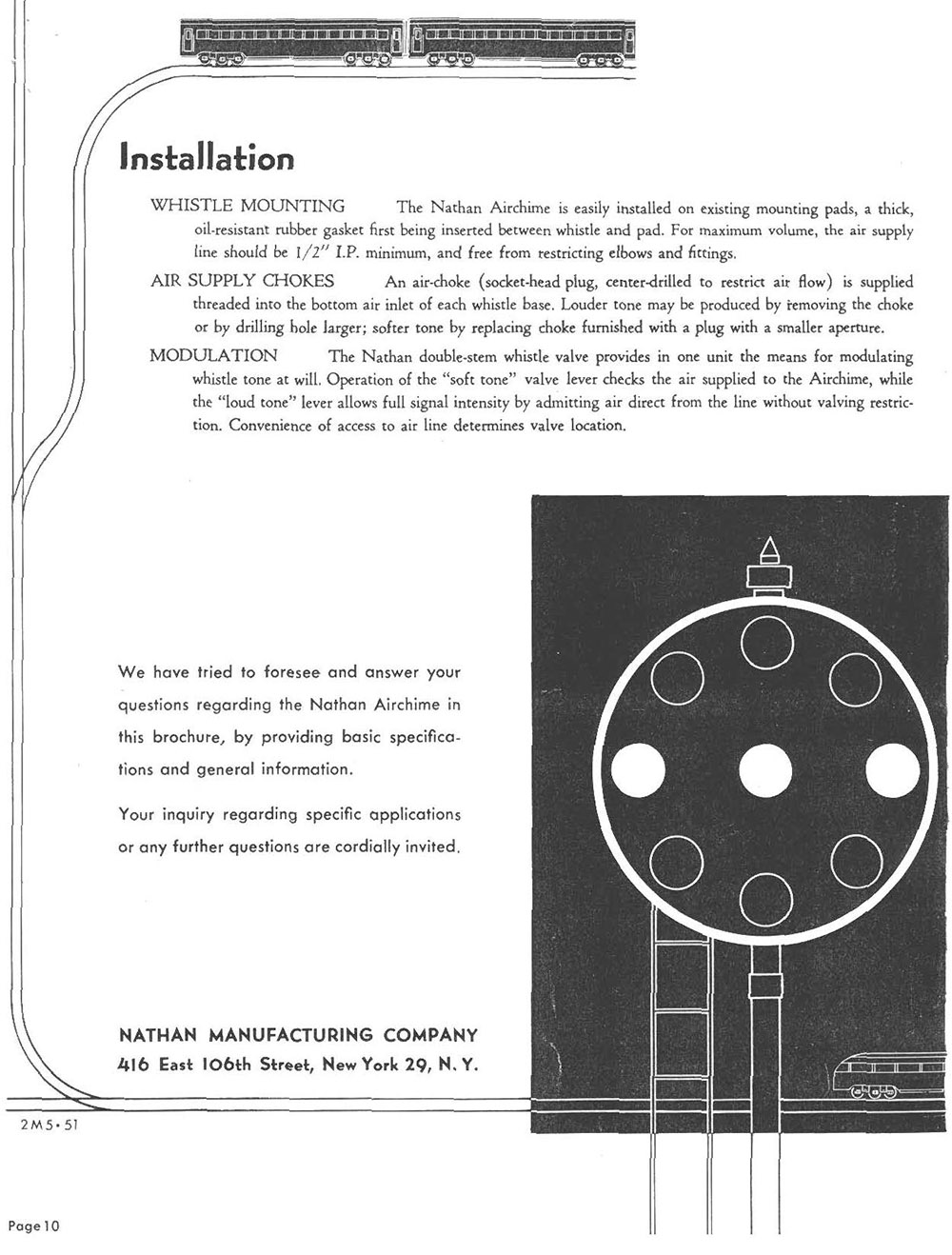

Nathan M Series Catalog-page-010.jpg
Top
Flat Train United States of America
Sandcast Senior
Posts: 119
Joined: Mon Sep 21, 2020 1:53 am
Location: Los Angeles, CA

Re: Nathan M Series Catalog & Technical Data

Post by Flat Train »

Wished DB level was listed as well. Do you know of any M horn DB tests?
