Rebuilding Nathan M Nozzle

Post by HWAdmin »

(posted by Michael Muha, 11 November 2017)

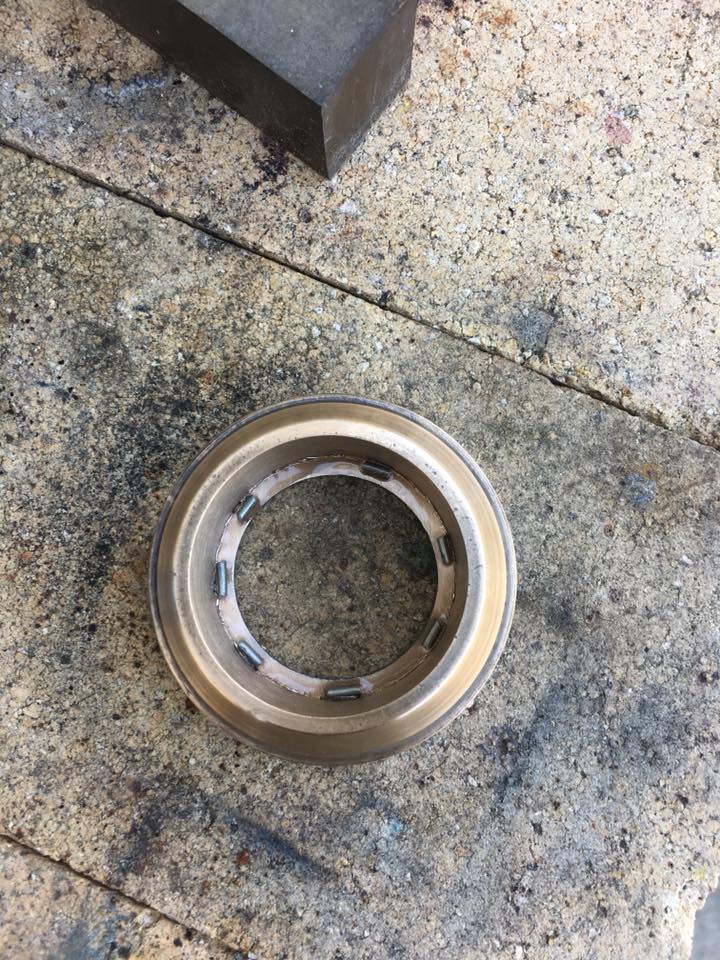

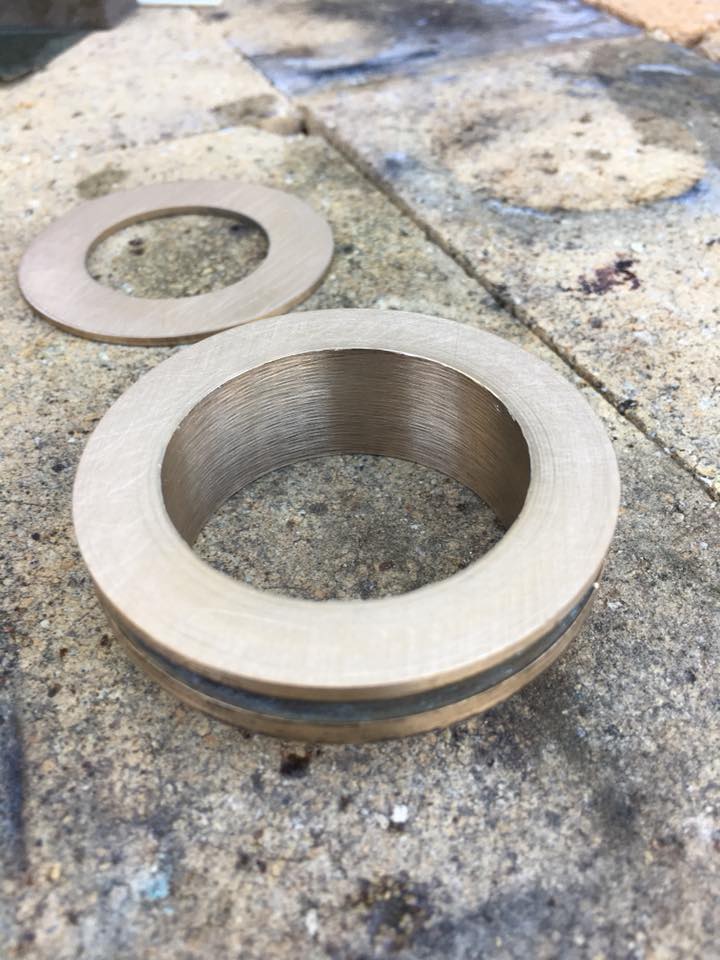

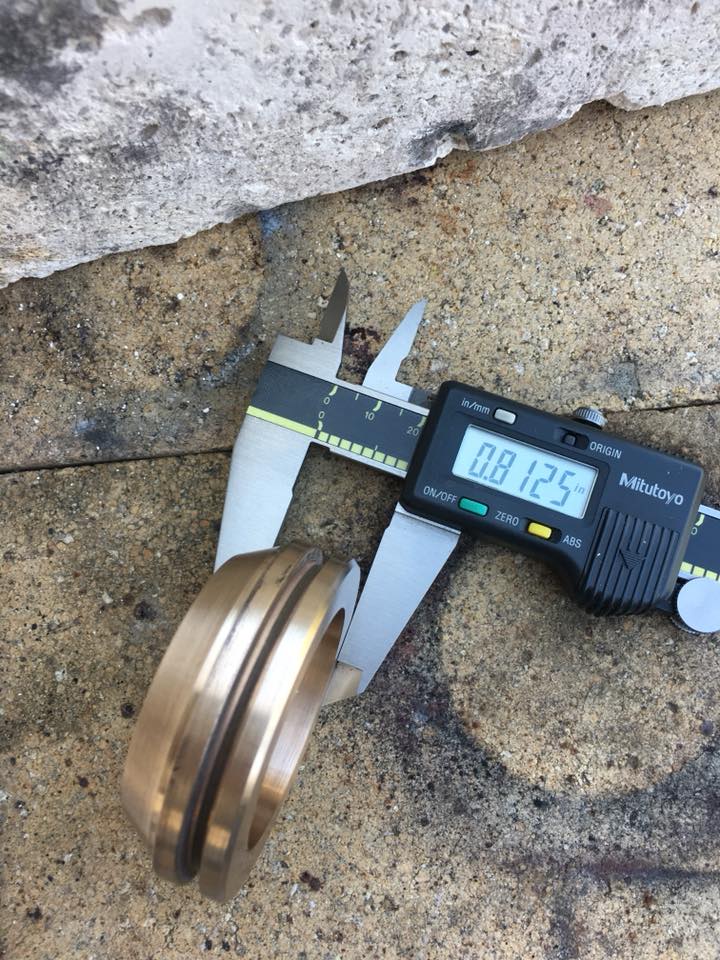

"Rebuilding some worn out Nathan M locomotive horn diaphragm seats (nozzles) this morning. Photo sequence shows prepped #3 seat and fabricated spacer low temperature silver brazed (EutecRod 157) together to compensate for wear, then machined to new specification height."
-----------
